Corrugated waveguide switches can be used in transmission lines to switch power between two branches. We offer a range of switches with low insertion loss that are compatible with our standard corrugated waveguides. These switches are intended for slow switching speeds by manual control. We can develop custom switches for your specific needs including automation capabilities.

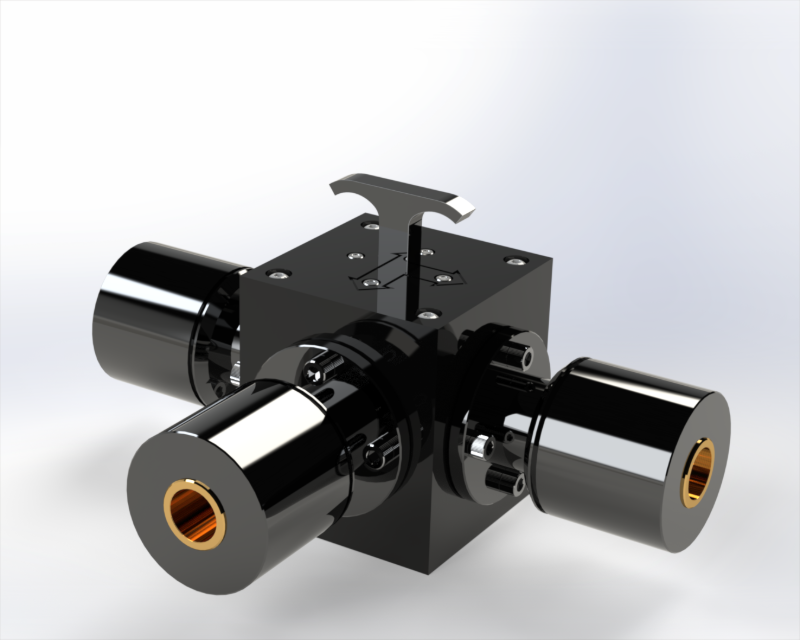

Corrugated Waveguide Switch
This switch is compatible with our 60 mm od corrugated waveguides. Switches compatible with our 35 mm od corrugated waveguides are also available.
Engineering Drawing
Typical Performance

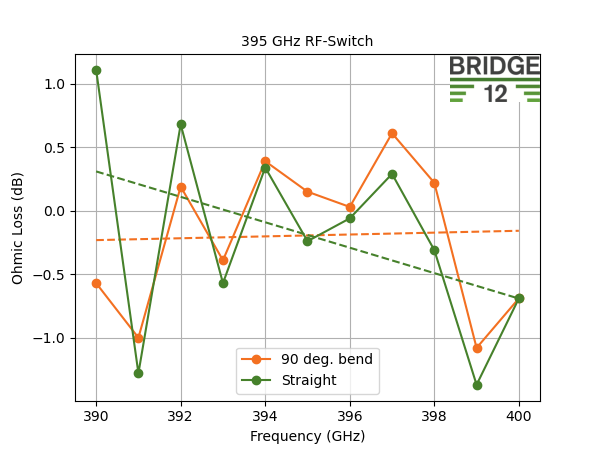

The typical insertion loss of a 395 GHz switch is shown here.
