Gyrotrons with Superconducting Magnets

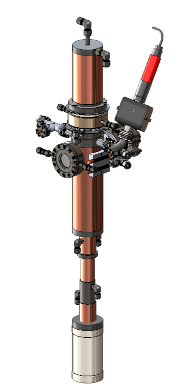

We develop a range of gyrotron systems for use in Dynamic Nuclear Polarization enhanced Nuclear Mangetic Resonance (DNP-NMR) spectroscopy, plasma heating and diagnostics and material processing. These gyrotrons range in power from a few watts to hundreds of kW. A 10 kW, 170 GHz continuous wave gyrotron tube is shown on the right. This device operates in a 6.3 T superconducting magnet.
Gyrotrons with Permanent Magnets

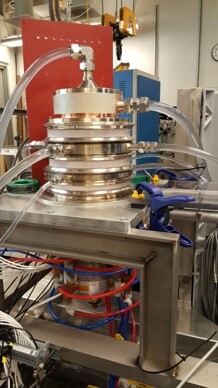

We have developed gyrotrons with permanent magnets for special applications. A 90 kW long pulse W-band gyrotron operating in the second harmonic with a hybrid (electromagnet and a permanent magnet) is shown on the left.
Tunable Gyrotrons for DNP-NMR

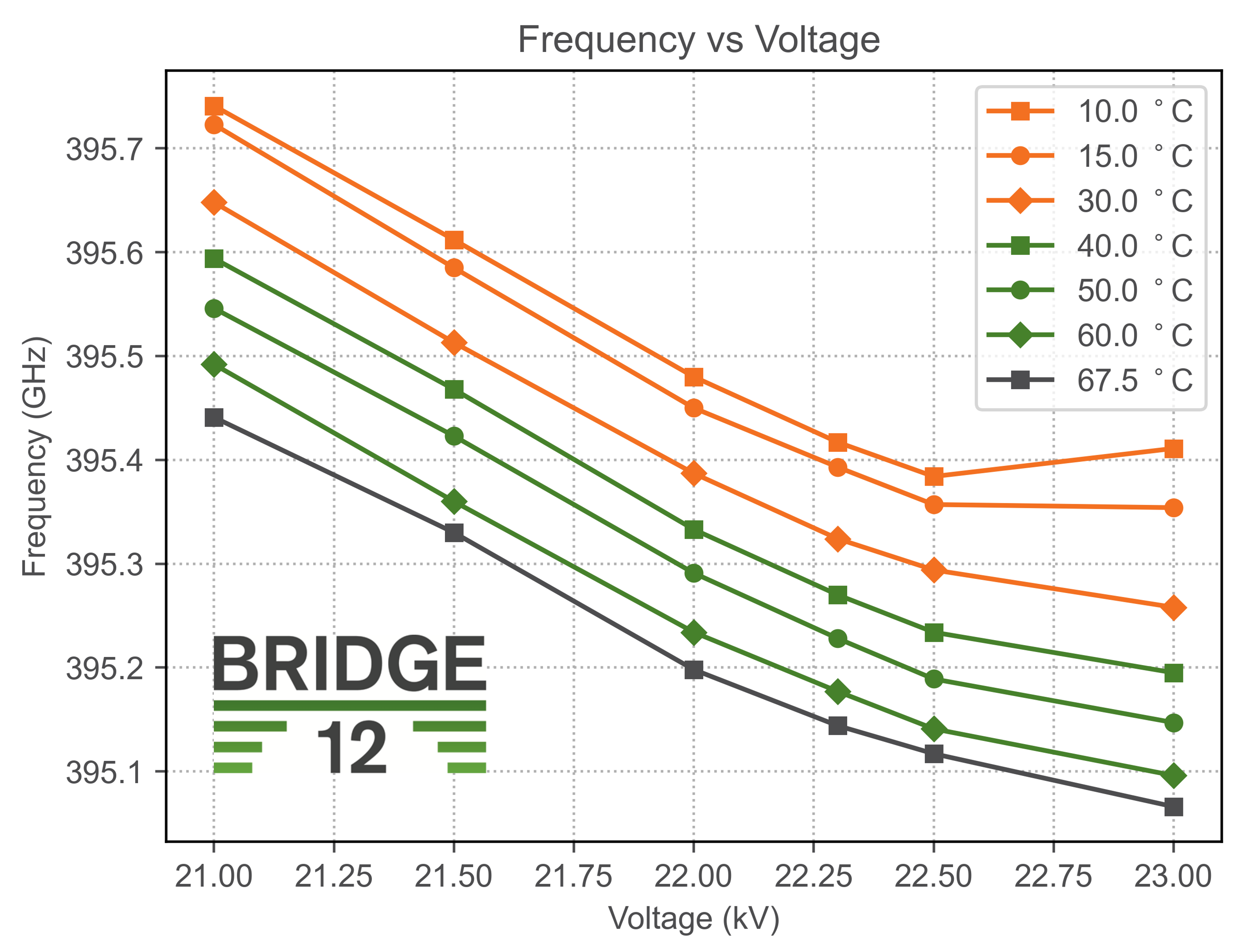

Unlike standard fixed frequency gyrotrons available in the market, Bridge12’s gyrotrons are designed to be tunable to allow users to conduct versatile DNP-NMR experiments like measuring the enhancement field profile to determine the frequency for maximum enhancement and also to work with a range of polarizing agents. DNP-NMR systems equipped with tunable gyrotrons do not need expensive sweep coil in the NMR magnet. This reduces cost as well as provides the ability to upgrade existing NMR setups without having the need to replace the NMR magnet. Typical frequency tuning characteristics of our 395 GHz gyrotron is shown on the right. An additional 0.35 GHz tuning is available by integrated temperature control
Custom Frequency Gyrotrons for DNP-NMR Upgrade
Bridge12 can provide a gyrotron, transmission line, and a solid-state MAS NMR probe in collaboration with our partners, JEOL, Phoenix NMR. Our solution will leverage your existing NMR spectrometer to provide a fast, cost-effective and versatile path to adding DNP capability. Contact us for a solution to upgrade your existing NMR setup at any frequency with DNP-NMR capability.
Bridge12 Gyrotron Product Line
We can develop a gyrotron for your specific application. Contact us for your specific needs. Our current gyrotron product line is listed below.
| Model No. | Frequency | Power | Tuning Range | Application | ||||
|---|---|---|---|---|---|---|---|---|
| 12GYO095904 | 95 GHz | 90 kW | - | Special | ||||
| 12GYO170104 | 170 GHz | 10 kW | - | MMW Drilling | ||||
| 12GYO263301 | 263 GHz | 30 W | 0.8 GHz | DNP-NMR | ||||
| 12GYO395301 | 395 GHz | 30 W | 1.0 GHz | DNP-NMR | ||||
| 12GYO460301 | 460 GHz | 30 W | 1.2 GHz | DNP-NMR |
Gyrotrons under development
Bridge12 is developing a prototype 1 MW, 250 GHz gyrotron for application in plasma heating for commercial net-electric magnetically confined fusion reactors such as tokamaks and stellarators. This project is supported by the ARPA-E under its GAMOW program.
